GYSFLASH 101.12 CNT FV
The GYSFLASH 101.12 CNT FV is an advanced, high-power battery charger and power supply unit, designed for professional use with 12V lead-acid and lithium batteries. With a charging current of up to 100A and inverter technology, this device ensures a stable voltage during diagnostic procedures, making it essential for the maintenance of modern vehicles.
Thanks to USB connectivity, the charger is fully customizable, allowing users to add, remove, or modify charging profiles and export charging history for analysis. With four operating modes—charging, diagnostics, showroom power, and testing—the GYSFLASH 101.12 CNT FV is highly versatile and adaptable to various applications.
Additionally, the device features multi-step automatic charging cycles, designed to optimize the lifespan and performance of both lead-acid and lithium batteries.
Key Safety Features:
- Protection against short circuits, reverse polarity, and overheating
- Stable power supply for advanced vehicle electronics
- Automatic voltage regulation to prevent damage
With its high efficiency, adaptability, and advanced protection, the GYSFLASH 101.12 CNT FV is a reliable choice for professionals working with modern vehicle electronics.
Read more
GYSFLASH 101.12 CNT FV Battery Charger and Power Supply Unit

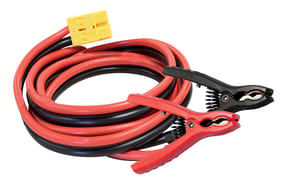

The GYSFLASH 101.12 CNT FV is an advanced battery charger and power supply unit, specifically designed for professional use with **12V lead-acid and lithium batteries**. With a **maximum charging current of 100A** and featuring **inverter technology**, this device provides a **stable and reliable power supply** during **diagnostic procedures**, which is essential for maintaining modern vehicles. The included charging cables with battery clamps measure **5 meters each**.
Key Features
- Four Operating Modes:
- Charging: Suitable for **12V lead-acid or lithium (LiFePO₄) batteries** ranging from **5 to 1200 Ah**.

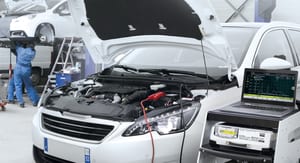

- Diagnosis + Power Supply: Provides **up to 100A** to support **vehicles during diagnostic procedures**.
- Showroom Power Supply: Maintains **power compensation** when **using electrical accessories** in **demonstration vehicles**.
- Testing Mode: Assesses **battery condition**, **starter system performance**, and **alternator status**.

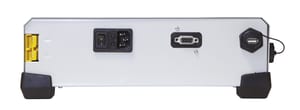

- 100% Connected: Thanks to **USB connectivity**, users can **add, remove, or modify charging profiles**. Additionally, it allows the **import of pre-configured settings** and the **export of charging history** for analysis. Furthermore, extra modules such as a **printer or barcode scanner** can be connected via the **dedicated module connector (SMC)**.
- Automatic Charging: Features **specific 8-step charging curves for lead-acid batteries** and **9-step curves for LiFePO₄ batteries**, ensuring **fully autonomous and safe charging**. The device can also **restore deeply discharged batteries (>2V)** using the **automatic SOS Recovery function**.
- Advanced Functionalities: Features such as **Auto-Detect** automatically start the charging process upon battery connection, while **Auto-Restart** retains settings in case of a power failure. The device also includes a **lock function** to **prevent unauthorized use**, making it ideal for **workshops and showrooms**.
- Safety Features: Provides **comprehensive protection** for **vehicle electronics**, including **short circuit protection, reverse polarity protection, and overcharge prevention**. It also features a **spark prevention system** and a **replaceable fuse** for added security. A **temperature sensor** prevents overheating of internal components.
Technical Specifications
| Input Voltage | 100-127V AC / 220-240V AC |
|---|---|
| Power Output | 750W (at 100-127V) / 1600W (at 220-240V) |
| Charging Current | Up to 100A |
| Battery Voltage | 12V |
| Supported Battery Capacity | 5 to 1200 Ah |
| Ripple Voltage | <150 mV RMS |
| Charging Curve | 8-step (Lead-Acid) / 9-step (LiFePO₄) |
| Protection Rating | IP21 |
| Charging Cable Length | 2x 5 meters |
| Dimensions (L x W x H) | 320 x 105 x 292 mm |
| Weight | 4.7 kg |
Conclusion
The **GYSFLASH 101.12 CNT FV** combines **versatility, advanced technology, and safety**, making it an **ideal choice for professionals working with modern vehicle electronics**. Whether for **charging, diagnostics, showroom demonstrations, or battery testing**, this device provides the **reliability and functionality** needed for **demanding applications**.
Advantages & drawbacks
- High charging capacity: Maximum 100A charging current, suitable for batteries from 5 to 1200 Ah.
- Multifunctional: Four operating modes for charging, diagnosis, showroom power and testing.
- Advanced safety: Protection against short circuit, reverse polarity and overheating.
- USB Connectivity: Ability to customize charging profiles and export charging history.
- Autonomous SOS Recovery: Automatically recovers deeply discharged batteries (>2V).
- High price: Quality costs money. Relatively expensive compared to simpler battery chargers.
Specs summary
- Features Battery charger
